Our Solutions
Fire Safety
Product Solutions
Comprehensive product suite from control panels to detectors, designed for Indian environments with global standards compliance.

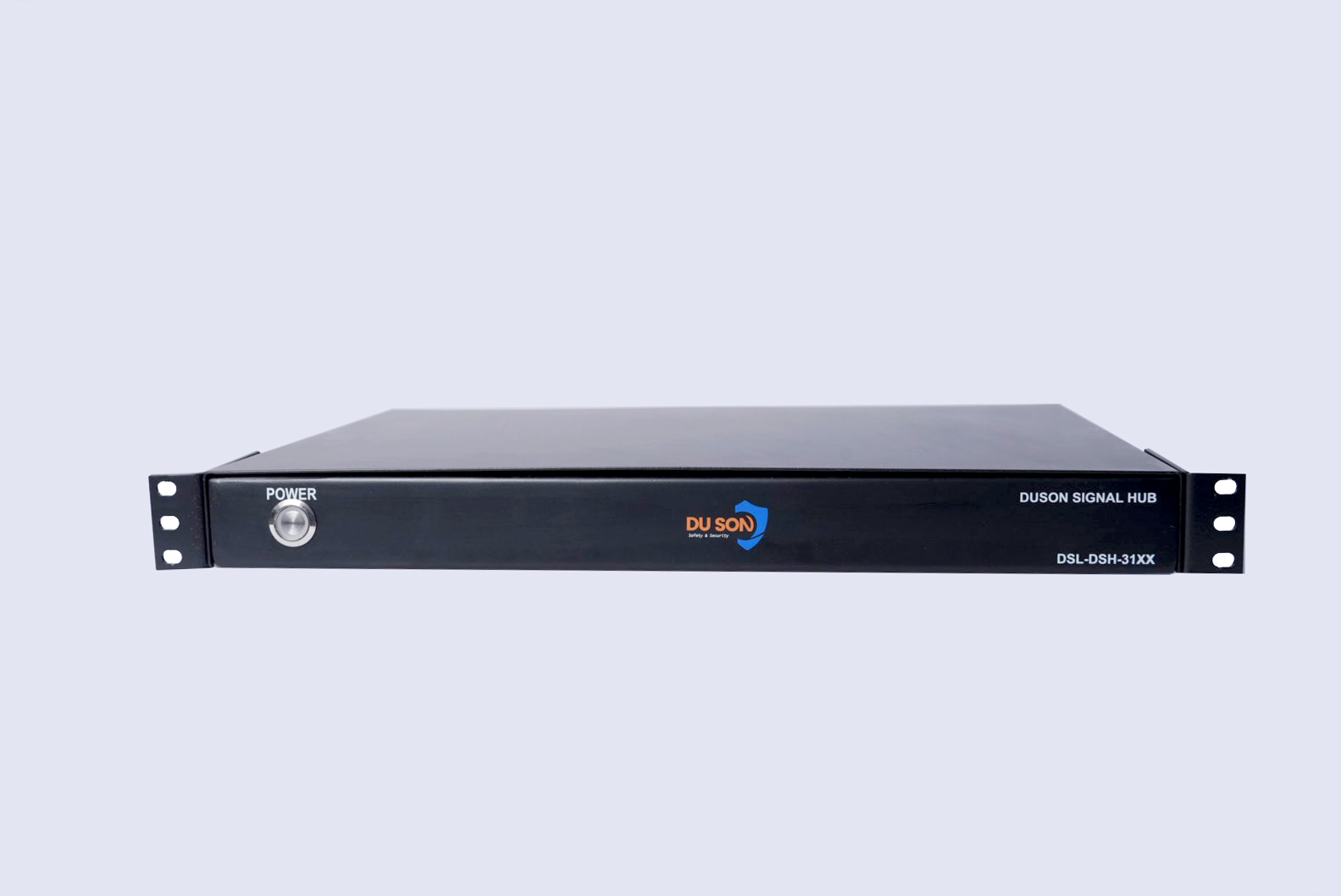

Signal Hub - DS-ASH240
Features:
- •1 loop, expandable up to 4 loops circuit
- •Each loop supports up to 60 zones
- •Maximum capacity of 240 zones with 4 loops
- •Includes Zener protection
- •Integration with FAS, AHU, Fire Curtains, BMS, and ACS
- •Supports up to 2-Call Stations
- •1U height Rack mountable
10" Touch Screen Call Station - DS-TSP240
Features:
- •10" Capacitive Touchscreen Display with HMI rendering
- •Graphical UI: Interactive, real-time control and status visualization for all zone endpoints
- •Voice-Based & Visual Call Alerts: Digital voice announcements & Visual call alert for incoming & outgoing calls
- •Event Logging: Real-time capture of call events with timestamped logs for audit and diagnostics
- •Announcement Modes: Single Zone, Multi-Zone, Group Zones (user-defined sets), All Zones broadcast
- •System allows adding additional zone Talkback speakers without disconnecting the currently active zone
- •Speaker Health Check: Test tone generator and fault detection system for verifying speaker functionality
- •Pre-Recorded Message Playback: Configurable playback of emergency or drill messages
- •Zener Barrier
- •AC Single Phase Power operation with battery backup for uninterrupted service

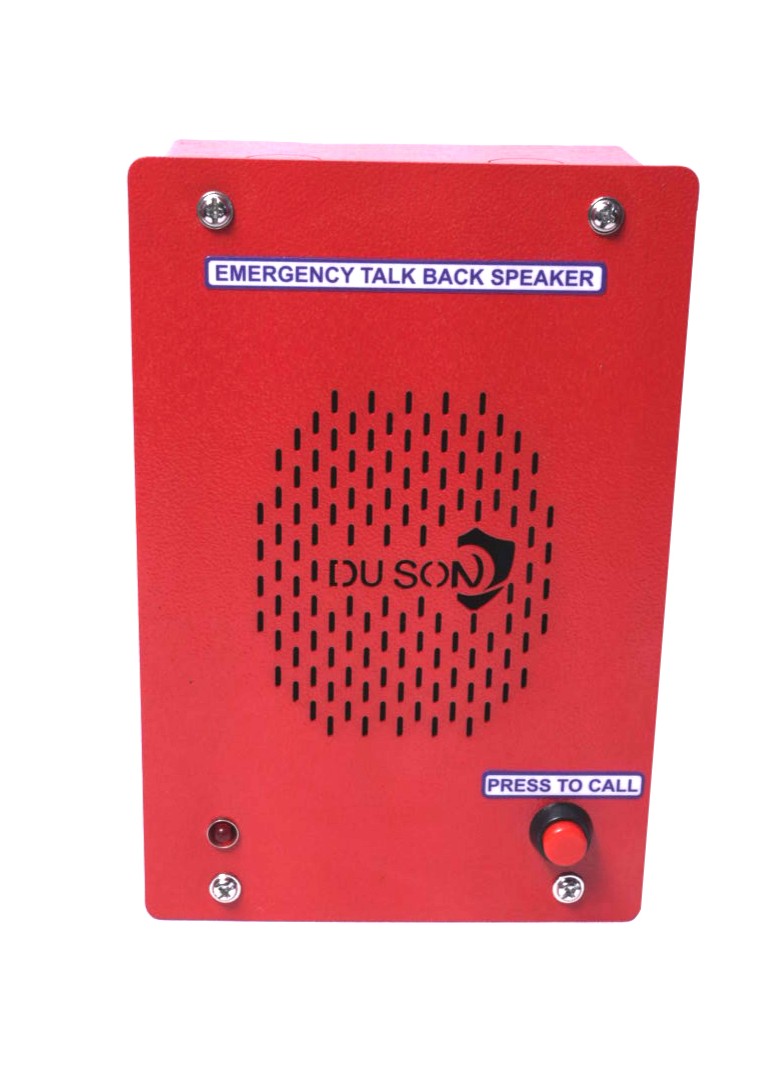

Addressable Talkback Speaker - DS-ASP240
Features:
- •Half-Duplex Voice Protocol
- •Optimized Acoustic Dispersion
- •Press to Call Momentary Call Activation Button
- •Visual Status Feedback (LED Indication)
- •Fault Isolation & Protection
- •Bus Isolation & protection
- •Comprehensive Fault Detection
- •Speaker level Third Party System Integration
- •Streamlined RS-485 Interconnection
- •6W speaker output power
- •Sound pressure level 90dB @ 1W/1m 1kHz
- •Built in reverse polarity protection
- •Ruggedized MS Enclosure
- •Tool-less Installation & Serviceability
- •Mild Steel (MS) with corrosion-resistant powder coating
- •Dimensions (H × W × D): 210 mm × 140 mm × 90 mm with ±5% accuracy
